With 6-position swing-out rotor

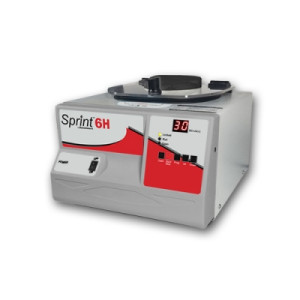

The Sprint™ 6H is a compact centrifuge that includes a six position swing-out rotor. Prior to centrifugation, tubes are loaded vertically. Once the centrifuge starts, tubes swing to a horizontal position, providing the flat-line separation that is commonly preferred for further analysis.
Designed for use with 10mL tubes (16 x 100mm), smaller tubes (12 x 75mm and 12 x 100mm) can be centrifuged using optional adapters.
With intuitive controls and a large LED display, virtually no programming or setup is required prior to starting a cycle. Simply select the run time and press "START". The safety lid-lock is engaged and the rotor quickly and smoothly accelerates to 3,400 rpm. Once the run time is completed (or the "STOP" button is pressed) the rotor comes to a complete stop and the lid lock is disengaged for removal of samples.

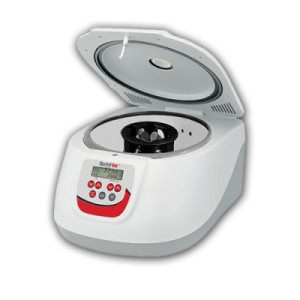

The Sprint™ 6H PLUS is a premium clinical centrifuge offering providing horizontal (swing-out) centrifugation:
- Increased speed up to 4,000rpm / 2850xg
- Back-lit, liquid crystal display
- Adjustable speed in increments of 100rpm
- Digital speed control in rpm or rcf
- Adjustable acceleration and deceleration levels
- A safety imbalance detection system
- Momentary operation
- High capacity rotor for tubes up to 15mL (conical or round bottom)
In addition, the Sprint™ 6H PLUS offers an optional fixed-angle rotor for centrifugation of up to 12 tubes.
|Sprint 6H||Sprint 6H Plus|
|Speed||3,400 rpm / 1,600 x g||4,000rpm / 2,850 x g|
|Capacity||6 x 10mL |
6 x 5/7mL
|6 x 15mL |
12 x 15mL
6 x 10mL
6 x 5/7mL
|Timer||1min. to 99mins.||1min. to 99mins., continuous|
|Dimensions (W x D x H)||12.8 x 11.5 x 9"||12.8 x 16 x 10.5"|
