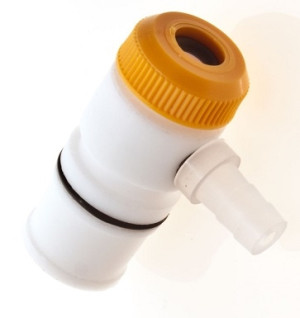

PTFE BEVEL-SEALâ„¢ Hose Inlet Adapter

PTFE BEVEL-SEAL™ Hose Inlet Adapter

Converts plain stem type funnels for vacuum filtration. Provides a combination inlet and vent tube on a single neck vessel. Extends gas inlet or gas dispersion tube into a flask to function as an impinger. Serves as a pressure relief vent when used with addition funnels. Can be used to construct gas washing bottles. Designed to adapt a variety of tubes, condensers and filters in Standard Taper 14/20 and Standard Taper 24/25-24/40 glassware. Diameter variations of 1 to 2mm can be accommodated since the inert o-ring is compressed by the polypropylene cap to effect a vacuum tight seal. The serrated side port can be used for a vacuum connection or for the introduction of gases. Bottom has a Standard Taper inner joint. Body is PTFE, o-rings are Viton, polypropylene compression cap is suitable for use to 150°C, and side port is CTFE.



Cat.No.NameJoint SizeAddl. Info.EA
186-179850-2114 Hose Inlet Adapter 14/20 5.5/6.5mm Accommodation Range $94.36
1/EA
Add To Favorites
186-179850-2124 Hose Inlet Adapter 24/25 5.5/6.5mm $102.52
1/EA
Add To Favorites
186-179850-2214 Hose Inlet Adapter 14/20 6.5/8.5mm $94.36
1/EA
Add To Favorites
186-179850-2224 Hose Inlet Adapter 24/25 6.5/8.5mm $103.44
1/EA
Add To Favorites
186-179850-2324 Hose Inlet Adapter 24/25 8.5/10.5mm $105.67
1/EA
Add To Favorites
