Agilent CrossLab Supplies for PerkinElmer ICP-MS Spectrometers - Spray Chambers

By Agilent Technologies
Agilent CrossLab Supplies for PerkinElmer ICP-MS Spectrometers - Spray Chambers

Agilent spray chambers and supplies are fully compatible with your PerkinElmer ICP-MS. The single pass glass cyclonic spray chamber for good signal to noise performance with excellent washout. Alternatively, the double pass glass cyclonic spray chamber provides improved plasma stability with organic and high TDS samples.


Cat.No. Use with Models Name Similar To Mfr. Number EA
92-8003-0501 ELAN 9000/6xX00/DRC/NexION Spray chamber drain fitting, 24 inch x 0.030 inch id, 0.062 inch od N8145015 $35.64
1/EA		 Add To Favorites
92-8003-0515 ELAN DRC/DRC Plus/DRC II Spray chamber, baffled, glass, cyclonic, with ball-joint, for ball-joint injectors N0773196 $1158.75
1/EA		 Add To Favorites
92-8003-0516 ELAN 9000/6xX00/DRC/NexION O-ring, for baffled quartz cyclonic spray chamber (PTFE O-ring type) with ball-joint 09210011 $3.81
1/EA		 Add To Favorites
92-8003-0487 ELAN 9000/6xX00/DRC/NexION End cap, for Cross-Flow II nebulizer, suits all GemClean Cross-Flow II nebulizers after September 1998 N8122239 $166.86
1/EA		 Add To Favorites
92-8003-0519 ELAN Spray chamber with auxiliary gas port, 7mm baffle, quartz, cyclonic, drain line included, connects directly to ESI injectors N0777034 $1651.09
1/EA		 Add To Favorites
92-8003-0520 ELAN 9000/6x00/5x00/DRC-e Spray chamber, glass, cyclonic, O-ring-free N0775350 $974.38
1/EA		 Add To Favorites
92-8003-0521 ELAN 9000/6x00/5x00/DRC-e Spray chamber, water-cooled, glass, cyclonic, O-ring-free N0775354 $1204.07
1/EA		 Add To Favorites
92-8003-0496 ELAN 9000/6x00/5x00/DRC-e Connector, EzyLok, for jacketed spray chamber N0774101 $135.96
1/EA		 Add To Favorites
92-8003-0522 NexION/ELAN 9000/6x00/5x00/DRC-e Scott spray chamber, HF-resistant N8120124 $993.95
1/EA		 Add To Favorites
92-8003-0523 NexION/ELAN 9000/6x00/5x00/DRC-e O-ring, large, for Scott spray chamber WE013060 $4.02
1/EA		 Add To Favorites
92-8003-0524 NexION/ELAN 9000/6x00/5x00/DRC-e Retaining ring, for Scott spray chamber WE014081 $112.27
1/EA		 Add To Favorites
92-8003-0588 ELAN 9000/6x00/DRC Mounting for cyclonic spray chamber WE014034 $337.84
1/EA		 Add To Favorites
92-8003-0605 NexION Drain tubing, 1/16 inch od, 0.038 inch id PTFE tubing 02506495 $7.26
1/EA		 Add To Favorites

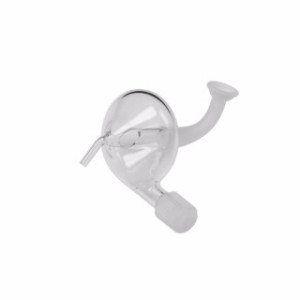

92-8003-0514 NexION Spray chamber, baffled, glass, cyclonic, with ball-joint, for ball-joint injectors N8145014 $906.40
1/EA		 Add To Favorites
92-8003-0517 NexION Spray chamber, high purity, quartz, cyclonic, O-ring-free, provides excellent sensitivity and stability with low background N8145120 $2169.18
1/EA		 Add To Favorites
92-8003-0518 NexION Spray chamber, borosilicate glass, cyclonic, O-ring-free N8145119 $1482.17
1/EA		 Add To Favorites
92-8003-0614 NexION Spray chamber, baffled quartz, cyclonic (PTFE O-ring type) with ball-joint N8145013 $1243.21
1/EA		 Add To Favorites
92-8003-0946 NexION Spray chamber, UltraClean, low volume Scott-style PFA spray chamber, for concentric nebulizers with PFA end cap N8142000 $4218.88
1/EA		 Add To Favorites
92-8003-0947 NexION Spray chamber, UltraClean, low volume Scott-style PFA spray chamber, for concentric nebulizers. Requires PFA injector assembly and PFA end cap N8122356 $2835.59
1/EA		 Add To Favorites
92-8003-0948 NexION End cap, for low volume Scott-style PFA spray chamber, for concentric nebulizer N8122357 $1080.47
1/EA		 Add To Favorites
92-8003-0963 NexION IsoMist temperature controlled spray chamber. Provides the benefits of a temperature-controlled ICP sample introduction system in a compact, convenient package. Temperature range is between -10°C and +60°C in 1°C increments. Includes software, polymer coated PFA double-pass spray chamber, torch interface, and mounting kit. N8141426 $10290.73
1/EA		 Add To Favorites
92-G8010-80042   Helix seal for O-ring-free spray chamber, suits any ICP spray chamber that uses the Helix fitting to secure the nebulizer in the side arm N0777439 $141.11
1/EA		 Add To Favorites
92-G8010-80043   Helix locking screw for O-ring-free spray chamber, suits any ICP spray chamber that uses the Helix fitting to secure the nebulizer in the side arm N0777438 $95.22
1/EA		 Add To Favorites
