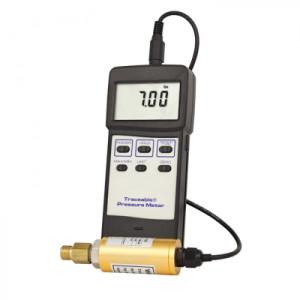

Traceable® Pressure/Vacuum Gauge
By Control
Makes Adjustments in five units: pounds per square inch, bar, centimeters of mercury, meters of water, and atmospheres. Meter is accurate to 1% full-scale plus 1 digit.
Jumbo-size digits are 3/8 inches high. Serial RS-232 output allows it to be connected to a computer or data logger for monitoring and keeping results. Certificate is provided to indicate instrument traceability to NIST.
At the touch of a button the unit may be zeroed. Memory key recalls highest and lowest readings. A DATA HOLD button "freezes" the display to capture readings. Transducer has 1/4 inch NPT male-threaded stainless-steel end. It may be used with all gases and liquids compatible with 316 stainless steel. Cable is 40 inches.
Supplied with Traceable® Certificate, transducer sensor, 9-volt alkaline battery and serial computer output. Size is 7 x 3 x 1-1/4 inches and weight is 9.5 ounces. Replacement battery Cat. No. 1112.
| Cat. No. | 291-3165 | 291-3166 |
|---|---|---|
| psi range (resolution) | -14.7 to 725 (1) | -14.70 to 29.0 (0.02) |
| bar range (resolution) | -1.0 to 50 (0.05) | -1.000 to 2.000 (0.002) |
| Meter/H2O (resolution) | -10 to 509.5 (0.5) | -10.00 to 20.40 (0.02) |
| Atmospheres range (resolution) | -1.0 to 49.35 (0.05) | -1.000 to 1.974 (0.002) |
| mm/Hg range (resolution) | -736 to 37500 (50) | -736 to 1500 (2) |
| inch/Hg range (resolution) | -29 to 1476 (1) | -29 to 59.05 (0.05) |
| inch/H2O range (resolution) | -394 to 20050 (20) | -394 to 802 (1) |
| Kg/cm2 range (resolution) | -1 to 50.95 (0.05) | -1.000 to 2.040 (0.002) |
