TubeRoller™

TubeRoller™

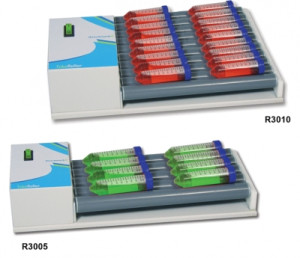

Benchmark TubeRollers™ are designed for the gentle, throrough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes, and roller botles. Both models (5 roller and 10 roller) operate at a constant 38 rpm, chosen as the optimum speed for the broadest range of mixing requirements.

As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5" (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a "wave" effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built in tilt feature provides a level of homogeneous mixing uniformity that can not be matched by any stationary roller apparatus.

Speed Fixed, 38 rpm (+/- 10%)
Tilt Angle +/- 5°
Motion Simultaneous roll & tilt
Operating Temp. Range +4 to +40°C
Dimensions R3005: 18 x 7 x 3.5" / R3010: 18 x 14 x 3.5"
Number of Rollers R3005: 5 / R3010: 10
Weight R3005: 11bs / R3010: 17.6
Roller DImensions 12 x 12.5"
Vessels Accepted 8mm to 200mm (diameter)
Roller Spacing 5mm (rollers are on 35mm centers)
Electrical 115V or 230V, 50-60Hz


Cat.No. Name Voltage EA   Certified
26510-R3005 TubeRoller™ with 5 rollers 115V $1074.67
1/EA
Add To Favorites
26510-R3005-E TubeRoller™ with 5 rollers 230V $1074.67
1/EA
Add To Favorites
26510-R3010 TubeRoller™ with 10 rollers 115V $1607.83
1/EA
Add To Favorites
26510-R3010-E TubeRoller™ with 10 rollers 230V $1607.83
1/EA
Add To Favorites
