Labconco® ChemVac® Combination Vacuum Pumps

By Labconco

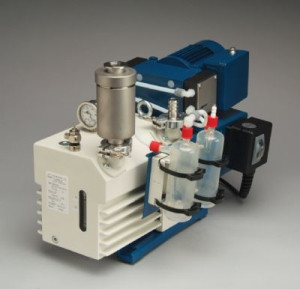

Labconco® ChemVac® Combination Vacuum Pumps

ChemVac® Combination Pumps integrate a high performance rotary vane pump with a chemical-resistant diaphragm pump to create a low maintenance, longer-lasting pump. The diaphragm pump removes the condensable vapors in the rotary vane pump before they can contaminate the oil, thus extending the life of the oil and ultimately the life of the pump. Pump oil lasts up to 10 times longer than in conventional rotary vane pumps under virtually any condition. Long periods between oil changes reduce cost and down time.

ChemVac® pumps are designed for use with acids and other harsh chemicals including TFA, TFA by-products, acetonitrile, HBe and HNO3 present in samples such as HPLC-prepared and peptide purified materials. Compatible with FreeZone® Freeze Dry Systems and CentriVap® Centrifugal Concentrators.

  • Environmentally-friendly
  • Ultimate vacuum (partial pressure) <3 x 10-3 mBar (2.25 micron)
  • Pressure control valve compensates for the different volumes displaced by the two pumps
  • Glass separator(s) capture downstream condensate vapors
  • Ready to use and fully charged with vacuum pump oil (approximately 1 liter)
  • 3/4" OD inlet adapter
  • Include power switch, power cord and plug

Labconco® ChemVac® Combination Vacuum Pumps


Cat.No. Brand Name Voltage Plug Type EA
1195-7584000 ChemVac® Combination Vacuum Pump, 110 liters/minute displacement at 60 Hz 115V Domestic $8570.00
1/EA		 Add To Favorites
1195-7584002 ChemVac® Combination Vacuum Pump, 110 liters/minute displacement at 60 Hz 230V Domestic $8570.00
1/EA		 Add To Favorites

Accessories


Cat.No. Name EA
1195-7541300 Vacuum Pump Oil, 1 Gallon $720.00
1/EA		 Add To Favorites
1195-7541500 Replacement Glass Separator, 160 milliliter capacity $320.00
1/EA		 Add To Favorites
