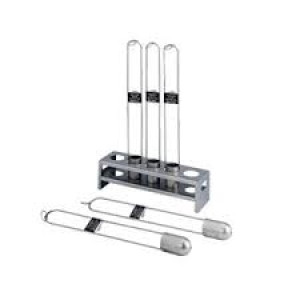

Boekel Zahn Cup Viscometers
By Boekel Industries
Compact and easy-to-use, Boekel Zahn Cup Viscometers quickly measure the viscosity of liquids such as paint, lacquer, varnish, syrup and oil. Cup volume is 44mL, and five cups are available differing only in the size of the orifice. Units are economical and provide rapid results - viscosity can be measured in the 18 to 1725 centistokes range in 90 seconds or less. Viscosity is expressed in Zahn seconds which are correlated to viscosity in centistokes.
| Cup Sizes | |||||
| Model Number 27134-: | -001 | -002 | -003 | -004 | -005 |
| Orifice Diameter: | 0.078" | 0.108" | 0.148" | 0.168" | 0.208" |
| Zahn Range, Approx.: | 45-80 sec | 25-80 sec | 20-75 sec | 20-80 sec | 20-75 sec |
| Centistoke Range, Approx.: | 18-56 | 40-230 | 150-790 | 220-1100 | 460-1725+ |
| Applications: | Very thin oil | Thin oil or laquer | Medoim oil or mixed paints | Heavy mixtures | Very heavy mixtures |
| Overall Length: 13-3/4" cup depth, 2-3/8" cup width, 44mL cup capacity | |||||
