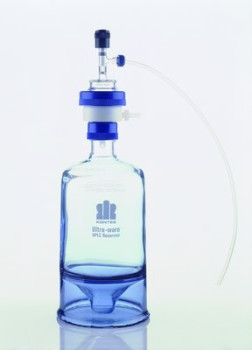

ULTRA-WARE® Filtration/Delivery Cap System

ULTRA-WARE® Filtration/Delivery Cap System

Modular system that maximizes mobile phase preparation time at the lowest possible cost.

  • Separate caps for performing filtration and sparging/delivery
  • Filtration/vacuum degassing can be performed at one central location with prepared mobile phase delivered directly to HPLC stations
  • Filtration cap is specially designed to filter HPLC mobile phase directly into the reservoir using 47 mm membrane filters
  • Vacuum degassing is accomplished by closing the HI-VAC® valve on the solvent pickup adapter
  • Three hole cap is used to helium sparge and deliver the mobile phase to the pump system
  • Helium-tight seals maximize sparging efficiency
  • 1/4-28 fittings and adapters are supplied to allow simple, easy connection to any HPLC pump system
  • Supplied with filtration cap (with 40-60 micron porosity glass support frit), standard solvent pickup adapter, three hole cap, conical bottom reservoir, standard fittings kit and FEP PTFE tubing
  • Patent No. 5,397,467
  • Recommended for most solvents used for HPLC mobile phase
  • Caps and solvent pickup adapter o-rings and solvent inlet filters must be changed when using tetrahydrofuran (THF) or other aggressive solutions
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Cat.No. Name Capac. H x Diam EA
186-953971-1003 Filtration/Delivery System 10L 570 x 255 $2279.48
