Liners for Varian

By Restek

Split liners are designed with mixing chambers and tortuous flow paths, to fully vaporize the sample into a homogeneous vapor cloud before it reaches the split point. All Restek split liners are fully deactivated using a high-temperature silanizing reagent. This caps surface silanol groups so active compounds in the sample do not degrade or adsorb onto the hot glass surface.

The residence time of the sample in a splitless liner is between 0.5 and 2 minutes, so splitless inlet liners do not require large surface areas for efficient vaporization (unless you are using a rapid-injecting autosampler). Splitless liners usually are designed as straight tubes. Splitless liners should be packed with wool or fused silica beads to help with vaporization, trap non-volatile residue, and prevent column contamination when analyzing dirty samples.

  • Use DI Liners for trace, active samples, high recovery, and linearity.
  • Use SPI liners for high linearity for 0.53mm ID columns.

Alternative splitless liner designs, such as gooseneck restrictions, help contain the sample cloud in the injector and minimize the breakdown of compounds sensitive to catalytic decomposition on metal inlet parts.

Cyclo-Uniliner® DI Liners for Varian 1075/1077 GCs

Cyclo-Uniliner® DI Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D.). For trace, dirty, high MW, active samples.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20347 Cyclo-Uniliner 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20348 Cyclo-Uniliner 72mm 6.3mm 4.0mm ID       DISCONTINUED

0.5mm SPI Liners for Varian

0.5mm SPI Liners for Varian

54 x 4.6 x 0.53mm (L x O.D. x I.D.). High linearity for 0.25 and 0.32mm columns.


Cat.No. Name Stem Length O.D. Fits Column Composition Size EA     PK
226-20775 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns   0.53mm ID DISCONTINUED
226-20775-214.1 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns Siltek 0.53mm ID DISCONTINUED
226-20776 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns   0.53mm ID       $162.00
5/PK
Add To Favorites
226-20776-214.5 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns Siltek 0.53mm ID       DISCONTINUED
226-20777 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns   0.53mm ID       DISCONTINUED
226-20777-214.25 0.5mm SPI Liner 54mm 4.6mm 0.25 and 0.32mm ID columns Siltek 0.53mm ID       DISCONTINUED

0.8mm SPI Liners for Varian

0.8mm SPI Liners for Varian

54 x 4.6 x 0.80mm (L x O.D. x I.D.). High linearity for 0.53mm columns.


Cat.No. Name Stem Length O.D. Fits Column Size EA     PK
226-20778 0.8mm SPI Liner 54mm 4.6mm 0.53mm ID 0.80mm ID DISCONTINUED
226-20779 0.8mm SPI Liner 54mm 4.6mm 0.53mm ID 0.80mm ID       $156.00
5/PK
Add To Favorites
226-20780 0.8mm SPI Liner 54mm 4.6mm 0.53mm ID 0.80mm ID       DISCONTINUED

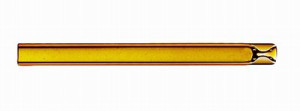

Splitless Liners for Varian1078/1079

Splitless Liners for Varian1078/1079

54 x 5.0 x 2.0mm (L x O.D. x I.D.). For trace samples <2µL.


Cat.No. Name Stem Length O.D. Composition Size EA     PK
226-21711 1078/1079 Splitless Liner 54mm 5.0mm   2.0mm ID DISCONTINUED
226-21711-214.1 1078/1079 Splitless Liner 54mm 5.0mm Siltek 2.0mm ID DISCONTINUED
226-21712 1078/1079 Splitless Liner 54mm 5.0mm   2.0mm ID       $138.00
5/PK
Add To Favorites
226-21712-214.5 1078/1079 Splitless Liner 54mm 5.0mm Siltek 2.0mm ID       $189.00
5/PK
Add To Favorites

Gooseneck Splitless Liners (4mm) for Varian 1177 GCs

Gooseneck Splitless Liners (4mm) for Varian 1177 GCs

78.5 x 6.5 x 4.0mm (L x O.D. x I.D.). For trace samples <2µL.


Cat.No. Name Stem Length O.D. Composition Size EA     PK
226-21896 Gooseneck Splitless Liner (4mm) 78.5mm 6.5mm   4.0mm ID DISCONTINUED
226-21896-214.1 Gooseneck Splitless Liner (4mm) 78.5mm 6.5mm Siltek 4.0mm ID DISCONTINUED
226-21897 Gooseneck Splitless Liner (4mm) 78.5mm 6.5mm   4.0mm ID       $99.00
5/PK
Add To Favorites
226-21897-214.5 Gooseneck Splitless Liner (4mm) 78.5mm 6.5mm Siltek 4.0mm ID       $150.00
5/PK
Add To Favorites

Double Gooseneck Splitless Liners (4mm) for Varian 1177 GCs

Double Gooseneck Splitless Liners (4mm) for Varian 1177 GCs

78.5 x 6.5 x 4.0mm (L x O.D. x I.D.). For trace active samples <2µL.


Cat.No. Name Stem Length O.D. Size EA     PK
226-21891 Double Gooseneck Splitless (4mm) 78.5mm 6.5mm 4.0mm ID DISCONTINUED
226-21892 Double Gooseneck Splitless (4mm) 78.5mm 6.5mm 4.0mm ID       $118.00
5/PK
Add To Favorites

1mm Split Liners for Varian 1075/1077 GCs

1mm Split Liners for Varian 1075/1077 GCs

72 x 6.3 x 1.0mm (L x O.D. x I.D.). Use for purge and trap inlet splitting or samples <1µL.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20970 1mm Split 72mm 6.3mm 1.0mm ID DISCONTINUED
226-20971 1mm Split 72mm 6.3mm 1.0mm ID       $151.00
5/PK
Add To Favorites

Splitter w/FS Wool Split Liners for Varian 1075/1077 GCs

Splitter w/FS Wool Split Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D.). Universal; use with rapid autosamplers.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20792 Splitter with Wool 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20793 Splitter with Wool 72mm 6.3mm 4.0mm ID       $142.00
5/PK
Add To Favorites
226-20794 Splitter with Wool 72mm 6.3mm 4.0mm ID       DISCONTINUED

Cup Splitter Split Liners for Varian 1075/1077 GCs

Cup Splitter Split Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D.). For high and low MW compounds.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20724 Cup Splitter 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20725 Cup Splitter 72mm 6.3mm 4.0mm ID       DISCONTINUED

Laminar Cup Splitter Split Liners for Varian 1075/1077 GCs

Laminar Cup Splitter Split Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D.). For high MW samples.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20803 Laminar Cup Splitter 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20804 Laminar Cup Splitter 72mm 6.3mm 4.0mm ID       DISCONTINUED

Cyclosplitter® Split Liners for Varian 1075/1077 GCs

Cyclosplitter® Split Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D.). For dirty samples; many injections possible before cleaning.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20727 Cyclosplitter 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20728 Cyclosplitter 72mm 6.3mm 4.0mm ID       DISCONTINUED

2mm Splitless Liners for Varian 1075/1077 GCs

2mm Splitless Liners for Varian 1075/1077 GCs

74 x 6.3 x 2.0mm (L x O.D. x I.D.). For trace samples <2µL.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20721 2mm Splitless 74mm 6.3mm 2.0mm ID DISCONTINUED
226-20722 2mm Splitless 74mm 6.3mm 2.0mm ID       $120.00
5/PK
Add To Favorites
226-20723 2mm Splitless 74mm 6.3mm 2.0mm ID       DISCONTINUED

4mm Splitless Liners for Varian 1075/1077 GCs

4mm Splitless Liners for Varian 1075/1077 GCs

74 x 6.3 x 4.0mm (L x O.D. x I.D.). For trace samples >2µL.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20904 4mm Splitless 74mm 6.3mm 4.0mm ID DISCONTINUED
226-20905 4mm Splitless 74mm 6.3mm 4.0mm ID       DISCONTINUED
226-20906 4mm Splitless 74mm 6.3mm 4.0mm ID       DISCONTINUED

Double Gooseneck Splitless Liners for Varian 1075/1077 GCs

Double Gooseneck Splitless Liners for Varian 1075/1077 GCs

74 x 6.3 x 4.0mm (L x O.D. x I.D.). For trace, active samples up to 4µL.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20847 Double Gooseneck 74mm 6.3mm 4.0mm ID DISCONTINUED
226-20848 Double Gooseneck 74mm 6.3mm 4.0mm ID       DISCONTINUED
226-20849 Double Gooseneck 74mm 6.3mm 4.0mm ID       DISCONTINUED

Uniliner® DI Liners for Varian 1075/1077 GCs

Uniliner® DI Liners for Varian 1075/1077 GCs

72 x 6.3 x 4.0mm (L x O.D. x I.D. ). For trace, active samples; high linearity and recovery.


Cat.No. Name Stem Length O.D. Size EA     PK
226-20345 Uniliner 72mm 6.3mm 4.0mm ID DISCONTINUED
226-20346 Uniliner 72mm 6.3mm 4.0mm ID       $270.00
5/PK
Add To Favorites
