Thermolyne™ Large Chamber Muffle Furnaces

By Thermo

1.6 cu. ft. capacity and 1093°C max. temperature

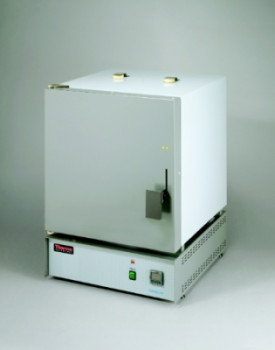

Thermolyne™ Large Chamber Muffle Furnaces

Applications:

  • Annealing glass
  • Determinations of volatiles
  • Catalyst research.
  • Ashing pulp and paper samples

Choose from three temperature control models:

Digital single set point control with a single ramp to set point and a dwell (B1). A single display shows actual temperature or set point. The furnaces that use this control also utilize a mechanical Over Temperature Protection relay. (Models F30420C, f30420C-*33, F30428C)

Digital programmable control with one stored program of 8 segments (C1). The furnaces that use this control also utilize a mechanical Over Temperature Protection relay. (Models F30420C-80, F30420C-33-80, F30428C-80)

Digital programmable control with 4 stored programs, 16 segments per program (D1). The controller also includes RS232 communications. The furnaces that use this control also utilize a mechanical Over Temperature Protection relay. (Models F30430CM-33, F30430CM, F30438CM)

In these large chamber furnaces, heating elements are located on top, bottom, and sides of chamber for enhanced temperature uniformity. Triple the usable working area with two supplied accessory refractory shelves. Built-in vent port removes undesirable contaminants and moisture and extends the life span of the element and unit. Critical electronic components and heating elements are protected by a 35 amp circuit breaker. Door safety switch protects operator by cutting power to the heating elements when the door is open.

The rear of the chamber incorporates a 0.38" (0.95 cm) diameter port for monitoring chamber temperatures with independent measuring devices. No power cord supplied. Electrical connection requires fixed wiring. 24 month warranty.



Cat.No.NameModelMax. Temp.VoltageControllerElectricalChamber DimensionsDimensions, Ext.EA
50-F30420C Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 240V B1 5500 Watts 14 x 14 x 14" (WxHxD) 21.5 x 29.5 x 25.5" (WxHxD) $9409.00
1/EA
Add To Favorites
50-F30420C-33 Large Chamber Muffle Furnace, CE 1.6 cu. in. 1093°C 240 B1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $9409.00
1/EA
Add To Favorites
50-F30420C-33-80 Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 240 C1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $10160.00
1/EA
Add To Favorites
50-F30420C-80 Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 240 C1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $10343.00
1/EA
Add To Favorites
50-F30428C Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 208 B1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $9191.00
1/EA
Add To Favorites
50-F30428C-80 Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 208 C1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $10310.00
1/EA
Add To Favorites
50-F30430CM Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 240 D1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $11097.00
1/EA
Add To Favorites
50-F30430CM-33 Large Chamber Muffle Furnace, CE 1.6 cu. in. 1093°C 240 D1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $11097.00
1/EA
Add To Favorites
50-F30438CM Large Chamber Muffle Furnace 1.6 cu. in. 1093°C 208 D1 5500 14 x 14 x 14" 21.5 x 29.5 x 25.5" $11097.00
1/EA
Add To Favorites
50-PH146X1 Hearth plate Hearth tray             $72.60
1/EA
Add To Favorites
50-SH412X1 Accessory Shelf Accessory shelf             $164.00
1/EA
Add To Favorites
