Scienceware® Table-Top Buchner Funnels and Accessories

By Bel Art Products

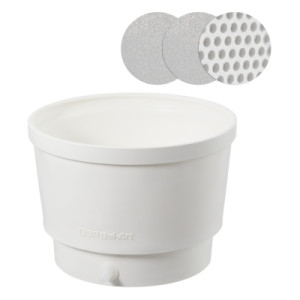

Scienceware® Table-Top Buchner Funnels and Accessories
  • Filter large volumes quickly with a polyethylene plastic Table-Top Buchner Funnel using your choice of Fritware® or Perforated filter plate.
  • Removable hose barbed connector accepts 12.7mm I.D. tube and threads into NPT bung on the funnel
  • Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
  • Fritware® Porous Filter Plates available in two porosities (medium and coarse); medium is 45-90 microns while the coarse is 90-130 microns; use temperature range maximum 52°C (125°F), minimum -20°C (-4°F)
  • Fixed or removable Perforated Filter Plates are made of 4.8mm thick HDPE with 4.8mm perforations on 11mm centers
  • Perforated Filter Plates available in two versions (fixed or removable); fixed for coarse filtration or use with a cloth or paper filter; removable for use in precious metals recovery; use temperature range maximum 52°C (125°F), minimum -20°C (-4°F)
  • Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process

Scienceware® Table-Top Buchner Funnels with Fixed or Removable Plate


Cat.No. Name Material Porosity Height Above Disc EA   Certified
8-H14620-0000 260mm Buchner funnel with fixed plate Polyethylene Coarse 178mm $470.15
1/EA
Add To Favorites
8-H14620-1260 260mm Buchner funnel with removable plate Polyethylene Coarse 178mm $476.75
1/EA
Add To Favorites
8-H14626-3510 260mm Buchner funnel with fixed plate Polyethylene Medium 178mm $476.75
1/EA
Add To Favorites
8-H14625-3510 260mm Buchner funnel with removable plate Polyethylene Medium 178mm $476.75
1/EA
Add To Favorites
8-H14625-3518 457mm Buchner funnel with fixed plate Polyethylene Medium 292mm $1166.60
1/EA
Add To Favorites
8-H14621-0000 457mm Buchner funnel with fixed plate Polyethylene Coarse 292mm $1166.60
1/EA
Add To Favorites
8-H14621-1457 457mm Buchner funnel with removable plate Polyethylene Coarse 292mm $1166.60
1/EA
Add To Favorites
8-H14622-0000 610mm Buchner funnel with fixed plate Polyethylene Coarse 330mm $2424.25
1/EA
Add To Favorites
8-H14622-1610 610mm Buchner funnel with removable plate Polyethylene Coarse 330mm $2581.35
1/EA
Add To Favorites
8-H14623-0000 914mm Buchner funnel with fixed plate Polyethylene Coarse 375mm $3863.45
1/EA
Add To Favorites

Scienceware® Table-Top Buchner Funnels with Perforated Plate


Cat.No. Name Material Height Above Disc EA   Certified
8-H14627-0000 260mm Buchner funnel with perforated fixed plate Polyethylene 178mm $476.75
1/EA
Add To Favorites
8-H14627-1260 260mm Buchner funnel with perforated removable plate Polyethylene 178mm $476.75
1/EA
Add To Favorites
8-H14628-0000 457mm Buchner funnel with perforated fixed plate Polyethylene 292mm $1007.95
1/EA
Add To Favorites
8-H14627-1457 457mm Buchner funnel with perforated removable plate Polyethylene 292mm $1007.95
1/EA
Add To Favorites
8-H14629-0000 610mm Buchner funnel with perforated fixed plate Polyethylene 330mm $1598.70
1/EA
Add To Favorites
8-H14630-0000 914mm Buchner funnel with perforated fixed plate Polyethylene 375mm $2874.65
1/EA
Add To Favorites
8-H14627-1914 914mm Buchner funnel with perforated removable plate Polyethylene 375mm $2889.25
1/EA
Add To Favorites

Replacement Plates


Cat.No. Name Material Porosity Height Above Disc EA   Certified
8-H91462-4326 260mm replacement plate Polyethylene Medium 178mm $343.40
1/EA
Add To Favorites
8-H91462-4026 260mm replacement plate Polyethylene Coarse 178mm $322.35
1/EA
Add To Favorites
8-H91462-4345 457mm replacement plate Polyethylene Medium 292mm $604.25
1/EA
Add To Favorites
8-H91462-4457 457mm replacement plate Polyethylene Coarse 292mm $730.65
1/EA
Add To Favorites
8-H91462-4361 610mm replacement plate Polyethylene Medium 330mm $1396.35
1/EA
Add To Favorites
8-H91462-4610 610mm replacement plate Polyethylene Coarse 330mm $1356.75
1/EA
Add To Favorites
8-H91462-4914 914mm replacement plate Polyethylene Medium 375mm $2101.60
1/EA
Add To Favorites
8-H91462-4091 914mm replacement plate Polyethylene Coarse 375mm $2725.70
1/EA
Add To Favorites

Replacement Perforated Plates


Cat.No. Name Material Height Above Disc EA   Certified
8-H91463-1260 260mm replacement perforated plate Polyethylene 178mm $283.75
1/EA
Add To Favorites
8-H91463-1457 457mm replacement perforated plate Polyethylene 292mm $339.65
1/EA
Add To Favorites
8-H91463-1610 610mm replacement perforated plate Polyethylene 330mm $618.55
1/EA
Add To Favorites
8-H91463-1914 914mm replacement perforated plate Polyethylene 375mm $910.20
1/EA
Add To Favorites
