Whatman™ Anotop™ Syringe Filters

By Whatman/Cytiva

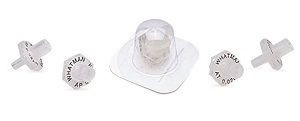

Whatman™ Anotop™ Syringe Filters

Anotop syringe filters are designed for use with most organic solvents and aqueous materials and are suitable for sample volumes up to 100mL. The devices feature a distinctive hexagonal housing, produced from pigment-free polypropylene to eliminate sample contamination. No wetting agents or adhesives are used in the manufacturing process. Anotop syringe filters contain the unique Anopore membrane and are supplied in three pore sizes. Low protein binding. Hydrophilic. Very good solvent resistance. Glass microfiber prefilter versions are available for difficult-to-filter samples.

Specifications:

Anotop 10 Anotop 10 Plus Anotop 25 Anotop 25 Plus
Housing Polypropylene Polypropylene Polypropylene Polypropylene
Filtration Area 0.78 cm2 0.78 cm2 4.78 cm2 4.78 cm2
Maximum Pressure 100 psi 100 psi 100 psi 100 psi
Volume 'Hold Up' <20µL <30µL <150µL <200µL
Prefilter Type N/A Glass microfiber (binderless) N/A Glass microfiber (binderless)
Membrane Diameter 10mm 10mm 25mm 25mm
Membrane Type Anopore Anopore Anopore Anopore
Average Membrane Thickness 60µm 60µm 60µm 60µm
Device Width 14mm 14mm 31mm 31mm
Device Length 18mm 18mm 25mm 25mm
Device Shape Hexagonal Hexagonal Hexagonal Hexagonal
Construction Process Thermal weld Thermal weld Thermal weld Thermal weld
Inlet Connection Female luer lock Female luer lock Female luer lock Female luer lock
Outlet Connection Male slip luer Male slip luer Male slip luer Male slip luer
Protein Adsorption Low Medium/high Low Medium/high
Extractable Materials Low Low Low Low
Cytotoxicity Non-cytotoxic Non-cytotoxic Non-cytotoxic Non-cytotoxic

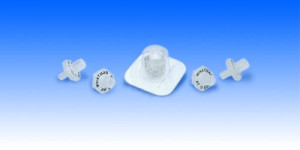

Anotop 10

10mm diameter syringe filter for sample volume up to 10mL. Inorganic membrane with capillary pore structure made from Gamma-Alumina, 6mm Al203. Low protein binding and low hold up volume <20µL ensures maximum sample recovery. Sterile formats available for critical applications.


Cat.No. Name Diam Pore Size Membrane PK
15-6809-1002 Anotop 10 10mm 0.02 µm Anopore $835.02
50/PK
Add To Favorites
15-6809-1012 Anotop 10 10mm 0.1 Anopore $725.16
50/PK
Add To Favorites
15-6809-1022 Anotop 10 10mm 0.2 Anopore $692.92
50/PK
Add To Favorites
15-6809-1102 Anotop 10 10mm 0.02 Anopore sterile $887.76
50/PK
Add To Favorites
15-6809-1112 Anotop 10 10mm 0.1 Anopore sterile $789.62
50/PK
Add To Favorites
15-6809-1122 Anotop 10 10mm 0.2 Anopore sterile $757.38
50/PK
Add To Favorites

Anotop 10 Plus

The Anotop 10 Plus syringe filter offers the added benefit of an integral glass microfiber prefilter. This unit is designed to enable difficult and hard-to-filter solutions to be filtered without adversely affecting the filtration efficiency of the final membrane. This can eliminate the need for sample clean up or expensive and time-consuming sequential filtration.


Cat.No. Name Diam Pore Size Membrane PK
15-6809-3002 Anotop 10 Plus 10mm 0.02 µm Anopore w/ prefilter $912.66
50/PK
Add To Favorites
15-6809-3012 Anotop 10 Plus 10mm 0.1 Anopore w/ prefilter $887.76
50/PK
Add To Favorites
15-6809-3022 Anotop 10 Plus 10mm 0.2 Anopore w/ prefilter $852.60
50/PK
Add To Favorites
15-6809-3102 Anotop 10 Plus 10mm 0.02 Anopore w/ prefilter, sterile $1060.62
50/PK
Add To Favorites
15-6809-3112 Anotop 10 Plus 10mm 0.1 Anopore w/ prefilter, sterile $946.36
50/PK
Add To Favorites
15-6809-3122 Anotop 10 Plus 10mm 0.2 Anopore w/ prefilter, sterile $1188.08
50/PK
Add To Favorites

Anotop 25

25mm diameter syringe filter for sample volumes up to 100mL. Contains a glass microfiber prefilter. Use for cold sterilization of growth media, phage and virus filtration, removal of high molecular weight proteins or polymers, liposome extrusion or filtration of solvents for spectroanalysis and analytical sample preparation.


Cat.No. Name Diam Pore Size Membrane PK
15-6809-2002 Anotop 25 25mm 0.02 µm Anopore $1101.64
50/PK
Add To Favorites
15-6809-2012 Anotop 25 25mm 0.1 Anopore $994.70
50/PK
Add To Favorites
15-6809-2022 Anotop 25 25mm 0.2 Anopore $962.48
50/PK
Add To Favorites
15-6809-2024 Anotop 25 25mm 0.2 Anopore $3495.38
200/PK
Add To Favorites
15-6809-2102 Anotop 25 25mm 0.02 Anopore sterile $1196.86
50/PK
Add To Favorites
15-6809-2112 Anotop 25 25mm 0.1 Anopore sterile $1284.76
50/PK
Add To Favorites
15-6809-2122 Anotop 25 25mm 0.2 Anopore sterile $1284.76
50/PK
Add To Favorites

Anotop 25 Plus

Similar to Anotop 25 but with a glass microfiber (binderless) prefilter. As a result the filter has a slightly higher hold-up volume than the Anotop 25 as well as higher protein absorption. Suitable for filtration of tissue culture media; clean-up of difficult samples; filtration of colloidal material; removal of mycoplasma; or HPLC and biological sample preparation.


Cat.No. Name Diam Pore Size Membrane PK
15-6809-4002 Anotop 25 Plus 25mm 0.02 µm Anopore w/ prefilter $1303.80
50/PK
Add To Favorites
15-6809-4012 Anotop 25 Plus 25mm 0.1 Anopore w/ prefilter $1198.34
50/PK
Add To Favorites
15-6809-4022 Anotop 25 Plus 25mm 0.2 Anopore w/ prefilter $1157.32
50/PK
Add To Favorites
15-6809-4024 Anotop 25 Plus 25mm 0.2 Anopore w/ prefilter $4138.50
200/PK
Add To Favorites
15-6809-4102 Anotop 25 Plus 25mm 0.02 Anopore w/ prefilter, sterile $1536.74
50/PK
Add To Favorites
15-6809-4112 Anotop 25 Plus 25mm 0.1 Anopore w/ prefilter, sterile $1431.26
50/PK
Add To Favorites
15-6809-4122 Anotop 25 Plus 25mm 0.2 Anopore w/ prefilter, sterile $1337.50
50/PK
Add To Favorites
