Owl™ Electrophoresis Power Supplies

The EC Power Supplies are simple-to-use and lightweight multi-purpose units to meet your power supply needs.

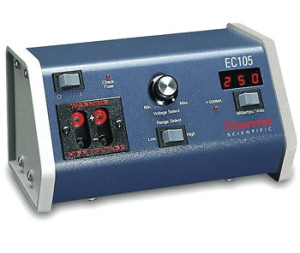

EC-105 Compact Power Supply

Ideal for DNA and RNA electrophoresis, the EC-105 Compact Power Supply operates as a constant voltage power supply and is very simple to use. The adjustment knob and hi-lo range switch control the output, which is variable in 10V increments from 20V to 250V. A two-position switch toggles the bright LED display from indicating output voltage to output current. The supply is also equipped with an over current detector for maximum safety and has two jacks.

Cat.No.	Model	Output Voltage	Amps	Addl. Info.	EA


669-105ECA-115	EC-105 Power Supply, 115V, 60Hz	Max 250V	Max 300mA @150-250V; 500mA below 150V	6 x 8 x 4.5"	$801.00 1/EA	Add To Favorites
669-105ECA-LVD	EC-105 Power Supply, 230V, 50Hz	Max 250V	Max 300mA @150-250V; 500mA below 150V	6 x 8 x 4.5"	$813.00 1/EA	Add To Favorites

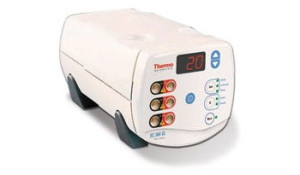

EC-300XL Compact Power Supply

The EC-300XL Compact Power Supply is great for DNA/RNA and protein electrophoresis. The supply features a power-off memory to retain settings after shut-down as well as a stackable design to save benchtop space. It also has a soft-touch key pad and 3 jacks.

Cat.No.	Model	Output Voltage	Amps	Addl. Info.	EA


669-EC300XL	EC-300XL Power Supply, 120V, 60Hz	Max 300V	Max 400mA	10.25 x 5.5 x 5.25"	$809.00 1/EA	Add To Favorites
669-EC300XL2	EX-300XL2 Power Supply, 230V, 50/60Hz	Max 300V	Max 400mA	10.25 x 5.5 x 5.25"	$0.00 1/EA CALL FOR PRICE	Add To Favorites

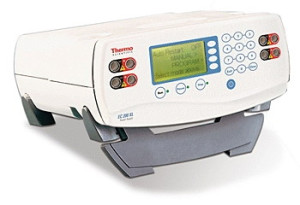

EC-200XL High Current Power Supply

The EC-200XL High Current Power Supply is ideal for DNA/RNA, protein, and blotting electrophoresis. The supply features a power-off memory to retain settings after shut-down as well as a stackable design to save benchtop space. It also has a soft-touch key pad and 4 jacks.

Cat.No.	Model	Output Voltage	Amps	Addl. Info.	EA


669-EC200XL	EX-200XL Power Supply, 120V, 50/60Hz	Max 200V	Max 2000mA	12 x 10.75 x 5.25"	$2917.00 1/EA	Add To Favorites
669-EC200XL2	EX-200XL2 Power Supply, 230V, 50/60Hz	Max 200V	Max 2000nA	12 x 10.75 x 5.25"	$0.00 1/EA CALL FOR PRICE	Add To Favorites

EC-1000XL Programmable Power Supply

Cat.No.	Model	Output Voltage	Amps	Addl. Info.	EA


669-EC1000XL	EC-1000XL Power Supply, 120V, 50/60Hz	Max 1000V	Max 500mA	12 x 10.75 x 5.25"	$2161.00 1/EA	Add To Favorites
669-EC1000XL2	EX-1000XL2 Power Supply, 230V, 50/60Hz	Max 1000V	Max 500mA	12 x 10.75 x 5.25"	$0.00 1/EA CALL FOR PRICE	Add To Favorites

The EC-1000XL Programmable Power Supply is perfect for DNA/RNA, protein, and blotting electrophoresis. The supply features a power-off memory to retain settings after shut-down as well as a stackable design to save benchtop space. It also has a soft-touch key pad and 4 jacks.

EC-3000XL Programmable Power Supply

Cat.No.	Model	Output Voltage	Amps	Addl. Info.	EA


669-EC3000XL	EC-3000XL Power Supply, 120V, 50/60Hz	Max 3000V	Max 400mA	12 x 10.75 x 5.25"	$3716.00 1/EA	Add To Favorites
669-EC3000XL2	EC-3000XL2 Power Supply, 120V, 50/60Hz	Max 3000V	Max 400mA	12 x 10.75 x 5.25"	$0.00 1/EA CALL FOR PRICE	Add To Favorites

Catalog Number	Description	Price

		$

EC-105 Compact Power Supply

EC-300XL Compact Power Supply

EC-200XL High Current Power Supply

EC-1000XL Programmable Power Supply

EC-3000XL Programmable Power Supply
