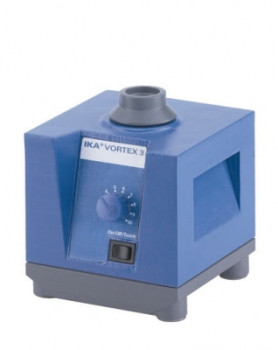

The new Vortex 3 Orbital Shaker features a compact design and is suitable for short-time operation (touch function), activated by pressing shaker attachment. It can also be used for continuous operation with low self heating due to self ventilation of the motor. It has a wide speed range that is infinitely adjustable.
Several interchangeable attachments and inserts (available separately) allow the Vortex 3 to be used for different applications. The attachments securely click onto the unit in any position. A special strap (VG 3.36) ensures easy handling of round/Erlenmeyer flasks. The Vortex 3 is stable even at high speeds, thanks to special feet in a silicon base with ultra high vibration damping. Sturdy metal zinc die casing ensures long life. Eccentric with ball bearings.
|Max. Shaking Weight (with attachment)||0.4 kg|
|Motor Rating Input / Output||58 / 10 W|
|Permissible ON Time||100%|
|Speed Range||500 – 2,500 rpm|
|Dimensions (W x D x H)||127 x 149 x 136mm|
|Permissible Ambient Temperature||5 – 40°C|
