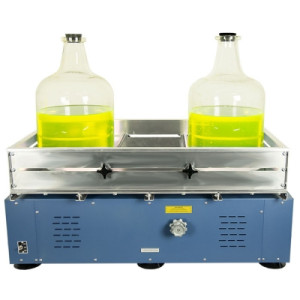

Eberbach Model 5900 Large Variable-Speed Reciprocal Shakers
By Eberbach
Eberbach's Model 5900 Large Variable-Speed Reciprocal Shaker is designed to shake large containers or large quantities of smaller containers. Like all Eberbach Shakers, this unit is simple to use and maintain, and is manufactured to last you well into the next century.
The 5900 is powered by a 1/6 hp General Electric split phase motor which drives the platform through a mechanical transmission utilizing a variable pitch pulley system incorporating a V-belt drive. Speed is continuously variable between a range of 60-240 osc/minute, yet at a given setting the speed is constant, and is not affected by normal line voltage fluctuations. The horizontal stroke is adjustable to 3/4", 1-1/8" or 1-1/2" with a maximum load of 100 lbs.
The unit's available accessories include flask holders, separatory funnel holders, utility box carriers or you can increase your shaking capacity with a tiered platform system.
Model 5905 is the explosion-proof Model 5905 version of the large reciprocal shaker for use in hazardous locations (Class 1, Group D, Class 2, Groups E and F).
Flexibility
- Variable speed from 60-240 osc/min.
- Adjustable stroke: 3/4", 1-1/8", 1-1/2"
- Available with numerous accessories for shaking different combinations of beakers, flasks, funnels, etc.
High Performance
- 1/6 hp General Electric motor
- Suitable for weights up to 100 lbs
- Designed for continuous operation
Specifications:
| Shaker Motor | 1/6 hp GE split phase motor; Motor is designed for continuous duty operation |
| Shaking Speed | Variable speed regulation from 60 to 240 oscillations per minute; At given setting speed is constant |
| Stroke | Adjustable to 3/4", 1-1/8" and 1-1/2" |
| Setup Options | Flask holders of various sizes can be mounted to available large platform. Large utility box carrier with one (1) rubber coated crossbar is available to hold beakers, flasks, containers, etc. Platform tiering bars available for increased shaking capacity. Separatory funnel holders available |
| Type of Mounting | Floor; Suction cup feet prevent creeping |
| Load carrying capacity | Accepts loads up to 100 lbs/45.5 kgs |
| Weight: | 160 lbs (72.7 kgs) |
| Dimensions: | 10 in (25.4 cm) H x 39 in (93.6 cm) W x 20 in (50.8 cm) D |
