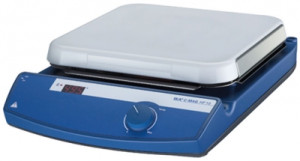

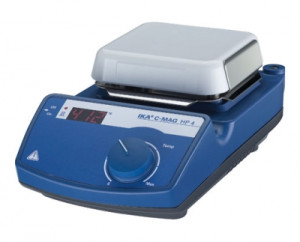

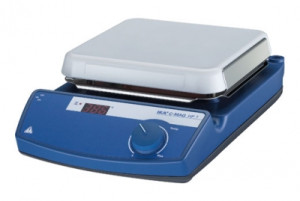

IKA® IKATHERM® Hot Plates
By Ika Works
The new IKATHERM® hot plates are constructed of ceramic glass and offer excellent chemical resistance. All models feature a fixed safety circuit of 550°C, exact temperature setting via digital display (LED), and digital error code display. A Hot Top indicator warns the user of a hot surface to prevent accidental burns. An elevated control panel provides protection against leaking liquids.
C-MAG HP 7 and C-MAG HP 10: bushing according to DIN 12878 for connecting a contact thermometer to enable precise temperature control.
| Technical Data | C-MAG HP 4 | C-MAG HP 7 | C-MAG HP 10 |
| Heat Output | 250 W | 1,000 W | 1,500 W |
| Heating Plate Temperature Range | 50 - 500°C | ||
| Safety Circuit Fixed | 550°C | ||
| Setting Accuracy | ± 10 K | ||
| Control Accuracy with Sensor | N/A | ETS-D5 ± 0.5 K | ETS-D5 ± 0.5 K |
| Temperature Display | Digital | ||
| Heating Plate | |||
| Material | Glass Ceramic | ||
| Dimensions | 100 x 100mm | 180 x 180mm | 260 x 260mm |
| General Data | |||
| Dimensions (W x D x H) | 150 x 260 x 105mm | 220 x 330 x 105mm | 300 x 415 x 105mm |
| Weight | 3 kg | 5 kg | 6 kg |
| Permissible Ambient Temperature | 5 – 40°C | ||
