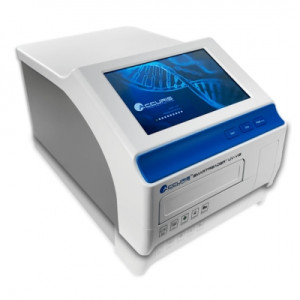

SmartReader™ UV-Vis Microplate Reader

SmartReader™ UV-Vis Microplate Reader

The Accuris SmartReader™ UV-Vis Microplate Reader has been designed with ease-of-use and fast results in mind. This instrument brings extensive capabilities to the lab bench and is designed for the busy lab with multiple users. The large touch screen command center is extremely user-friendly and allows for fast set up of new protocols, as well as modifying and running existing protocols.

  • Intuitive, 10-inch color touch screen control panel
  • Accepts both 96 & 384-well plates
  • Monochromator-based system
  • No filters required
  • Wavelength range from 200 to 1000 nm
  • Stand-alone design
  • No PC or special software required
  • USB port for flash drive data transfer



Specifications:

Plates Accepted 96-well and 384-well flat bottom
Display 10-inch color touch screen
Controls Touch screen and mouse
Light Source Xenon Flash Lamp
Wavelength Range 200-1000nm
Wavelength Precision ± 2 nm
Wavelength Accuracy ± 2 nm
Wavelength Selection Monochromator
Read-out Range 0 – 4.0 OD
Detector Dual silicon photoelectric detectors for measurement and reference
Linearity @ 450nm R2 ≥ 0.999, [0.0 – 3.0]
Accuracy @ 450nm 1.0% + 0.003 Abs (0 – 2.0] / 2.0% (2.0 – 2.5 Abs]
Precision @ 450nm CV < 0.5% or SD<0.003 (Precision mode); CV < 1.0% (Fast mode)
Stability @ 450nm < 0.005A , (0.0 – 2.0] / < 2%   (2.0 – 2.5 Abs)
Measurement Speed 96 well plate:  <6 seconds (fast mode); <25 seconds (precision mode) / 384 well plate: <74 seconds (only precision mode available for 384)
Plate Shaking Linear; three levels of shaking speed
Incubator From ambient +5°C to 45°C
Temp. Uniformity ± 0.5°C @ 37°C
Storage 16G memory, more than 10,000 test records can be stored
Connection Ports 3 USB ports, for PC, printer and USB-flash drive
Power Supply DC24V  6.5A
Dimensions 300×500×260mm / 11.8 x 19.7 x 10.25 inches
Weight 15.5kg / 34 Lbs





Cat.No.NameEA Certified
26510-MR9610 SmartReader™ UV-Vis Microplate Reader $13995.00
1/EA
Add To Favorites
26510-MR9610-SDP SmartDrop™ Accessory Plate for MR9610 $2995.00
1/EA
Add To Favorites
