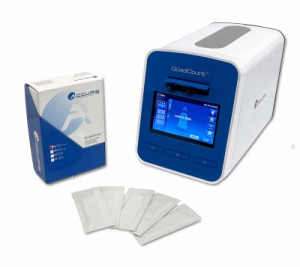

QuadCount™ Automated Cell Counter

QuadCount™ Automated Cell Counter

The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source, precision optics and a high resolution CMOS detector. A finely tuned, motorized XYZ positioning stage provides for extra fine focusing and ability to capture multiple images.

  • Fast, accurate and reproducible results
  • Intuitive software and touch-screen interface
  • Convenient and cost-effective QuadSlides™
  • Count sample volumes up to 3.6µl
  • Compatible with most common mammalian cell lines

Specifications:

Optics High quality 4x objective lens
Pixel resolution 2592 x 1944
Image Detection 5 mega pixel CMOS sensor
Illumination Green LED (50,000 hour shelf life)
Sample Volume 20µL (4 samples per QuadSlide)
Max. Counting Volume 3.6µL (24 image captures)
Consumable Slide QuadSlide, 4-chamber
Counting Modes/Speeds Quick (20 sec), Normal (30 sec), Precise (100 sec)
Dynamic Range 1 x 104 to 1 x 107 cells per mL
Cell Size Range 5 to 60µm
Data Output USB drive for PDF report
Dimensions 6.4 x 11.5 x 8.5 in. / 16.3 x 29.3 x 21.6 cm
Weight 11 lbs
Electrical 115V, 50-60Hz





Cat.No.NameEA CertifiedPK Seal Color
26510-E7500 QuadCount™ Automated Cell Counter $3695.00
1/EA
Add To Favorites
26510-E7500-S1 QuadSlides for QuadCount       $149.00
50/PK
Add To Favorites
