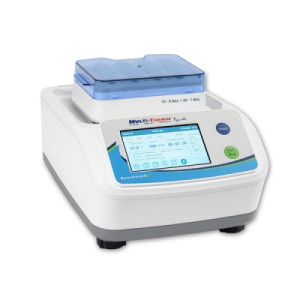

Multi-Therm™ Touch Thermal Mixer
Like the popular MultiTherm, the MultiTherm Touch features a broad temperature range to meet applications from denaturation of DNA to keeping samples cold (4°C) at the end of a protocol. An expanded speed range (to 3,000rpm), full-color touch screen, greater flexibility in programming and heated lid option set this new unit apart.
All operating parameters are easily entered and viewed on the large, full color, touch screen. Fifty programs can be stored, each including up to 5 steps. Programming features such as adjustable ramp rates, interval and directional mixing and preheat options can be set. A "short" button allows for immediate mixing at maximum speed. Fifteen block choices accommodate samples from 0.2ml to 50ml as well as a variety of plates. Blocks are quickly and easily interchanged without the use of tools and are automatically recognized by the software. Insulation protects the users from hot surfaces and helps to maintain block temperature.
Condensation can have negative effects on delicate samples and reactions by changing the concentration of reactants. The heated lid option, available for use with tubes up to 5ml and microplates, protects samples by warming the air in the tube and preventing condensation. Easy to use and reliable in operation, the MultiTherm Touch is covered by a 2 year warranty. Blocks and heated lid are sold separately.
Display/Control | 4.3 inch color touch screen with graphical interface |
Speed Range | 200 to 3000 rpm (block dependent) |
Shaker Orbit | 3mm |
Temperature Range | Ambient -20 to 105°C |
Temperature Uniformity | ±0.5°C |
Timer | 1s-99h:59m:59s or continuous |
Program Memory | 50 programs |
Steps/Program | 5 steps/program |
Programming Features | Adjustable ramp rate, mix mode, mix start, power failure restart, and heated lid temp |
Additional Features | Quick button, pause, import/export data and programs, automatic block recognition |
Dimensions (W x D x H) | 6.3 x 12.6 x 8.7 in. / 16 x 32 x 22 cm |
Weight | 22 lbs/10kg |
Electrical | 110 to 240V 50-60Hz |
Warranty | 2 Years |
