UltraSeal™ Lite Plate Sealer

UltraSeal™ Lite Plate Sealer

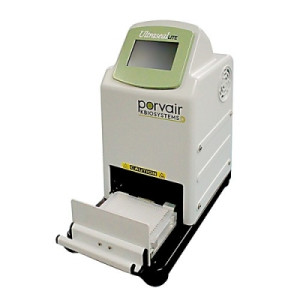

The Ultraseal™ Lite semi-automatic microplate heat sealer from Finneran Porvair processes deep well, shallow well, low profile deep well, filter, and assay plates that conform to the ANSI/SLAS standard format. The Ultraseal™ Lite heat sealer operates using 400W of heating elements that ensure high integrity sealing of almost any type of microplate. With so much available power, sealing times for most polypropylene plates are less than three seconds each. Sealed plates are automatically ejected, from the unit, when the sealing cycle has completed. The compact footprint means that the Ultraseal™ Lite will fit just about anywhere—lab bench or inside a fume hood, if required.


  • Designed to seal most types of microplates
  • Utilizes various heat seal films and foils to give either permanent or peelable seals for all common microplate material types (polypropylene, polystyrene, polyethylene)
  • Sealing times and temperatures are fully adjustable via the control touchscreen
  • Fully compatible with ANSI/SLAS standard plates and PCR, if full skirted
  • Dual voltage capability, operating on either 110 or 220 VAC supplies without the need for a power transformer

The Ultraseal™ Lite System has been designed to efficiently seal plates of different heights and different plastics, using a variety of films, to give a seal with varying properties. The quality and strength of the seal, created between the sealing film and the microplate, will vary between different conditions. In general, increasing either the sealing temperature or duration of seal will provide a stronger, more complete seal.

Features and Benefits:

  • Desktop semi-automatic heat applied microplate sealing system
  • Seals SBS format microwell plates and tubes
  • Seals plates of any height from 9-48mm
  • Temperature range from ambient to 200°C
  • Seal time from 0.1-9.9 seconds
  • Semi-automated slide operation
  • Combined temperature and seal time display
  • Lightweight system, only 6kgs (14lbs)
  • 110V/220V 50/60 Hz compatible
  • No compressed air required

Cat.No. Name EA
564-250-10071 UltraSeal Lite™ Semi-Automatic Plate Sealer $10400.00
