GEN2 BOD Incubator

By Boekel Industries

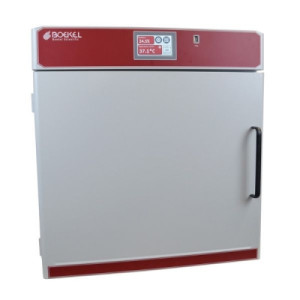

GEN2 BOD Incubator

Boekel Scientific’s new touchscreen Refrigerated Incubator was designed to be the most advanced incubator for microbiologic work. The thermoformed plastic interior is easy to clean and has a capacity to hold over 80 BOD bottles. Thermoelectric cooling and an advanced control system ensure that this incubator is suitable for most research and environmental laboratories.

The unit has an easily viewable, bright color touchscreen that displays alarms, current temperature, and the humidity level. The user can easily control and define temperature programs, alarm set points and control the internal power outlet based on time. The user interface was carefully designed to be intuitive and easily readable. The display can show temperature and humidity graphs and this data can be downloaded to a USB drive or through an Ethernet connection. The incubator is ideal for standard microbial work or low temperature work such as BOD testing, Drosophila, and extremophile bacteria culture because of the high-efficiency thermoelectric cooling. The unit can also add humidity to the chamber with the included humidity pan.

  • Designed specifically for BOD testing procedures
  • Vivid color touch screen that can easily be viewed from across the room
  • Thermoelectric cooling to support low temperature incubation processes
  • Internal power outlet with time-based control options
  • USB and Ethernet data ports
  • Two-year warranty
  • Made in the U.S.A
Specifications
Outer Dimensions W 25.75" x D 27.50" x H 27.25"
Chamber Capacity 4.0 cu ft - 86 BOD bottles
2 shelves included
Materials Painted steel exterior
Thermoformed plastic interiors
Stainless steel shelves
Cooling Method Peltier / Thermoelectric + fan
Heating Method Dual resistive + fan
Control System Standard and advanced control of temperature and internal outlet.
Time based control of setpoints with repeat function.
4 setpoint ramp
Humidity Method Stainless steel pan
Alarms User settable high & low
Temperature / humidity alarm
Timers User settable with/without alarm
User Interface 4.3" color touch screen
Temperature Range 4°C - 60°C @ 20°C ambient
Accuracy +/- 0.20°C @ 37°C
Stability +/- 0.10°C @ 37°C
Data Aquisition Screen graphing,
USB download,
Ethernet communication
Weight 105 lbs


Cat.No. Name Voltage Dimensions, Ext. Chamber Vol. EA   Certified
13-165000 GEN2 BOD Incubator 115V W 25.75" x D 27.50" x H 27.25" 4 cu. ft. $4637.07
1/EA
