Ohaus® Guardian™ 5000 Hotplate Stirrers

By Ohaus

Ohaus has gone beyond weighing!

View the NEW full line of equipment

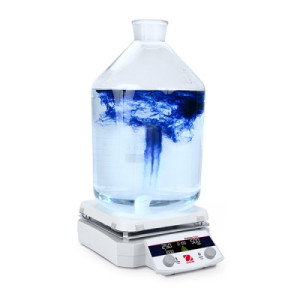

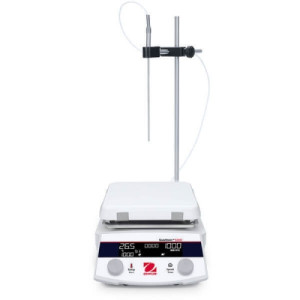

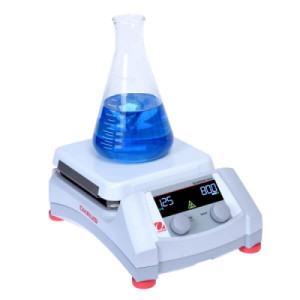

Ohaus® Guardian™ 5000 Hotplate Stirrers

The Ohaus® Guardian™ 5000 is a reliable hotplate stirrer with exceptional safety features for everyday use.Designed for safety and simplicity in all research, academia, and industrial applications, the design of the Guardian™ 5000 ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints.

Unique Features:

  • SafetyHeat™ System protects the lab: An industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an over temperature condition occurs.
  • Powerful, consistent stirring performance: Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet, and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
  • Easy to read LCD display with everything you need to know: The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator—all designed to quickly and easily monitor performance from across the lab.
  • Designed for durability and reliability with the exclusive SmartHousing: The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled control panel.

Note: Guardian™ 5000 hotplate only model e-G51HP07C (Cat.No. 316-30500530) is available here.


Model e-G51ST07C e-G51HP07C e-G51HS07C e-G51HS10C e-G51HSRDM
Function Stirring Heating Heating and Stirring
Top Plate Size 7 x 7" 10 x 10" 5.3" dia.
Speed Range 60 rpm to 1600 rpm 60 rpm to 1600 rpm
Speed Stability +/-2% +/-2%
Temperature Range Ambient + 5°C – 500°C Ambient + 5°C – 380°C
Temperature Stability +/-3% Plate, below 100°C +/-2°C / and +/-1% Probe, below 100°C +/-1°C
Temperature Calibration 3 Plate and 3 Probe
Control Digital
Display Backlit LCD for speed Backlit LCD for temperature Backlit LCD for temperature and speed
Capacity 15L 18L 20L
Top Plate Material Ceramic Aluminum
Dimensions (H x L x W) 4.8 x 12.2 x 8.8" 4.8 x 16.3 x 11.3" 5.0 x 10.5 x 6.8"
Working Environment 41°F – 104°F, 80% RH, non-condensing / 5°C – 40°C, 80% RH, non-condensing






Cat.No.BrandNameSurfaceSurface DimensionsEA Certified
316-30500540 Guardian™ e-G51ST07C Stirrer, 15L Ceramic 7 x 7" $300.00
1/EA
Add To Favorites
316-30500560 Guardian™ e-G51HSRDM Hotplate Stirrer, 20L Aluminum 5.3" dia. $500.00
1/EA
Add To Favorites
316-30500520 Guardian™ e-G51HS07C Hotplate Stirrer, 15L Ceramic 7 x 7" $500.00
1/EA
Add To Favorites
316-30500550 Guardian™ e-G51HS10C Hotplate Stirrer, 18L Ceramic 10 x 10" $650.00
1/EA
Add To Favorites
