Ohaus® Defender® 7000 Low Profile Scales

By Ohaus

Ohaus has gone beyond weighing!

View the NEW full line of equipment

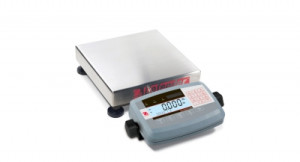

Ohaus® Defender® 7000 Low Profile Scales

The Ohaus® Defender 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and mounting brackets. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.


Standard Features Include:

  • Painted steel bases with ABS indicator
  • 10,000-12,500d default resolution for square bases, 5,000-7,500d default resolution for rectangular bases
  • 1:5,000 certified resolution for square bases; up to 1:3,000 for rectangular bases
  • Quick display of results using large dual line LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode using quick key press
  • Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
  • 255 item Library data storage function
  • Internal power supply with universal line cord or 6 "C" batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
  • Base and indicator connected using quick connect plug
  • Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

Ohaus® Defender® 7000 Low Profile Rectangular Scales

Model D71P15HR5 D71P30HR5 D71P60HR5 D71P60HL5 D71P100HL5 D71P150HX5 D71P300HX5
Max. Capacity x
Default Readability (d)
30lb x 0.002lb 60lb x 0.005lb 150lb x 0.01lb 150lb x 0.01lb 250lb x 0.02lb 300lb x 0.02lb 600lb x 0.05lb
480oz x 0.05oz 960oz x 0.1oz 2,400oz x 0.2oz 2,400oz x 0.2oz 4,000oz x 0.5oz 4,800oz x 0.5oz 9,600oz x 1oz
30lb : 0.05oz 60lb x 0.1oz 150lb : 0.2oz 150lb : 0.2oz 250lb : 0.5oz 300lb : 0.5oz 600lb : 1oz
15kg x 0.001kg 30kg x 0.002kg 60kg x 0.005kg 60kg x 0.005kg 100kg x 0.01kg 150kg x 0.01kg 300kg x 0.02kg
15,000g x 1g 30,000g x 2g 60,000g x 5g 60,000g x 5g 100,000g x 10g 150,000g x 10g 300,000g x 20g
Max. Displayed Resolution 1:15,000 1:12,000 1:15,000 1:15,000 1:12,500 1:15,000 1:12,000
Dimensions (W x H1 x D1 x D2) 12 x 3.7 x 14 x 22.8 12 x 3.7 x 14 x 22.8 12 x 3.7 x 14 x 22.8 15.7 x 4.1 x 19.7 x 28.5 15.7 x 4.1 x 19.7 x 28.5 16.5 x 4.9 x 21.7 x 30.5 16.5 x 4.9 x 21.7 x 30.5


Cat.No. Model Weighing Capacity Readability EA   Certified
316-80501324 D71P15HR5 30 lb 0.002 $1282.00
1/EA
Add To Favorites
316-80501325 D71P30HR5 60 lb 0.005 $1282.00
1/EA
Add To Favorites
316-80501326 D71P60HR5 150 lb 0.01 $1282.00
1/EA
Add To Favorites
316-80501327 D71P60HL5 150 lb 0.01 $1482.00
1/EA
Add To Favorites
316-80501328 D71P100HL5 250 lb 0.02 $1482.00
1/EA
Add To Favorites
316-80501329 D71P150HX5 300 lb 0.02 $1558.00
1/EA
Add To Favorites
316-80501330 D71P300HX5 600 lb 0.05 $1738.00
1/EA
Add To Favorites

Defender® 7000 Low Profile Square Scales

Model D71P10QR5 D71P25QR5 D71P50QL5 D71P100QL5 D71P250QX5
Max. Capacity x
Default Readability (d)
25 lb x 0.002 lb 50 lb x 0.005 lb 100 lb x 0.01 lb 250 lb x 0.02 lb 500 lb x 0.05 lb
400 oz x 0.05 oz 800 oz x 0.1 oz 1600 oz x 0.2 oz 4000 oz x .5 oz 8000 oz x 1 oz
25 lb : 0.05 oz 50 lb x 0.1 oz 100 lb : 0.2 oz 250 lb : .5 oz 500 lb : 1 oz
10 kg x 0.001 kg 25 kg x 0.002 kg 50 kg x 0.005 kg 100 kg x 0.01 kg 250 kg x 0.02 kg
10,000 g x 1 g 25,000 g x 2 g 50,000 g x 5 g 100,000 g x 10 g 250,000 g x 20 g
Max. Displayed Resolution 1:12,500 1:12,500 1:10,000 1:12,500 1:12,500
Dimensions (W x H1 x D1 x D2) 12 x 3.7 x 12 x 20.8" 12 x 3.7 x 12 x 20.8" 18 x 4.5 x 18 x 26.8" 18 x 4.5 x 18 x 26.8" 24 x 5.4 x 24 x 32.8"
Capacity x
Certified/Approved Readability
25 lb x 0.005 lb 50 lb x 0.01 lb 100 lb x 0.02 lb 250 lb x 0.05 lb 500 lb x 0.10 lb
10 kg x 0.002 kg 25 kg x 0.005 kg 50 kg x 0.01 kg 100 kg x 0.02 kg 250 kg x 0.05 kg
Max. Certified Resolution 1:5,000 1:5,000 1:5,000 1:5,000 1:5,000


Cat.No. Model Weighing Capacity Readability EA   Certified
316-80501487 D71P10QR5 25 lb 0.002 $1394.00
1/EA
Add To Favorites
316-80501488 D71P25QR5 50 lb 0.005 $1394.00
1/EA
Add To Favorites
316-80501489 D71P50QR5 100 lb 0.01 $1553.00
1/EA
Add To Favorites
316-80501490 D71P100QR5 250 lb 0.02 $1553.00
1/EA
Add To Favorites
316-80501491 D71P250QR5 500 lb 0.05 $2189.00
1/EA
Add To Favorites
