Ohaus® Defender® 7000 High Performance Scales

By Ohaus

Ohaus has gone beyond weighing!

View the NEW full line of equipment

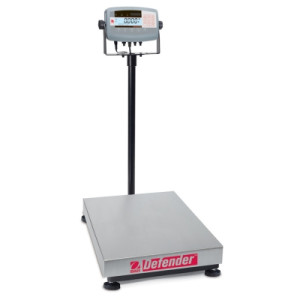

Ohaus® Defender® 7000 High Performance Scales

The Ohaus® Defender 7000 Series is a feature-rich line of bench scales, combining an ABS plastic T71P indicator with painted steel bases and columns. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 7000 can meet the needs of demanding industrial operations.


Standard Features Include:

  • Painted steel base with ABS indicator
  • 5,000-7,500d default resolution (rectangular models) / 10,000-12,500d (square models)
  • Certified resolution up to 1:3,000 (rectangular models) / 1:5,000 (square models)
  • Quick display of results using large dual line LCD with high-contrast white backlight
  • Temporary display of 10x readability in weighing mode using quick key press
  • Easy to operate with positive feedback 5-function key and alpha-numeric membrane keypad
  • Weighs in one or more units: kg, g, lb, oz, lb:oz (decimal), tonnes and user-definable custom unit
  • Multiple weighing modes including Counting, Percent Weighing, Dynamic/Animal Weighing, Checkweighing, Display Hold, and Accumulation
  • 255 item Library data storage function
  • Internal power supply with universal line cord or 6 "C" batteries (80 hour battery life) – optional NiMH internal rechargeable power pack available
  • Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input
  • Base and indicator connected using quick connect plug
  • Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module

Defender® 7000 Rectangular Scales

Model D71P15HR1 D71P30HR1 D71P60HR1 D71P60HL2 D71P100HL2 D71P150HX2 D71P300HX2
Capacity (max) x Default Readability 30lb x 0.002lb 60lb x 0.005lb 150lb x 0.01lb 150lb x 0.01lb 250lb x 0.02lb 300lb x 0.02lb 600lb x 0.05lb
480oz x 0.05oz 960oz x 0.1oz 2,400oz x 0.2oz 2,400oz x 0.2oz 4,000oz x 0.5oz 4,800oz x 0.5oz 9,600oz x 1oz
30lb : 0.05oz 60lb : 0.1oz 150lb : 0.2oz 150lb : 0.2oz 250lb : 0.5oz 300lb : 0.5oz 600lb : 1oz
15kg x 0.001kg 30kg x 0.002kg 60kg x 0.005kg 60kg x 0.005kg 100kg x 0.01kg 150kg x 0.01kg 300kg x 0.02kg
15,000g x 1g 30,000g x 2g 60,000g x 5g 60,000g x 5g 100,000g x 10g 150,000g x 10g 300,000g x 20g
Max. Displayed Resolution 1:15,000 1:12,000 1:15,000 1:15,000 1:12,500 1:15,000 1:12,000
Capacity x Certified/Approved Readability 30 lb x 0.01 lb 60 lb x 0.02 lb 150 lb x 0.05 lb 150 lb x 0.05 lb 250 lb x 0.1 lb 300 lb x 0.1 lb 600 lb x 0.2 lb
15 kg x 0.005 kg 30 kg x 0.01 kg 60 kg x 0.02 kg 60 kg x 0.02 kg 100 kg x 0.05 kg 150 kg x 0.05 kg 300 kg x 0.1 kg
Max. Certified Resolution 1:3,000 1:3,000 1:3,000 1:3,000 1:3,000 1:2,500 1:3,000
Column 13.8" painted steel 13.8" painted steel 13.8" painted steel 26.8" painted steel 26.8" painted steel 26.8" painted steel 26.8" painted steel
Dimensions 12 x 3.7 x 23.6 x 14 x 18.7" 12 x 3.7 x 23.6 x 14 x 18.7" 12 x 3.7 x 23.6 x 14 x 18.7" 15.7 x 4.1 x 37 x 19.7 x 24.4" 15.7 x 4.1 x 37 x 19.7 x 24.4" 16.5 x 4.9 x 37 x 21.7 x 26.4" 16.5 x 4.9 x 37 x 21.7 x 26.4"


Cat.No. Model Weighing Capacity Readability EA   Certified
316-80501303 D71P15HR1 30 lb 0.002 $1282.00
1/EA
Add To Favorites
316-80501304 D71P30HR1 60 lb 0.005 $1282.00
1/EA
Add To Favorites
316-80501305 D71P60HR1 150 lb 0.01 $1282.00
1/EA
Add To Favorites
316-80501306 D71P60HL2 150 lb 0.01 $1482.00
1/EA
Add To Favorites
316-80501307 D71P100HL2 250 lb 0.02 $1482.00
1/EA
Add To Favorites
316-80501308 D71P150HX2 300 lb 0.02 $1558.00
1/EA
Add To Favorites
316-80501309 D71P300HX2 600 lb 0.05 $1738.00
1/EA
Add To Favorites

Defender® 7000 Square Bench Scales

Model D71P10QR1 D71P25QR1 D71P50QL2 D71P100QL2 D71P250QX2
Capacity (max) x Default Readability 25lb x 0.002lb 50lb x 0.005lb 100lb x 0.01lb 250lb x 0.02lb 500lb x 0.05lb
400oz x 0.05oz 800oz x 0.1oz 1600oz x 0.2oz 4000oz x 0.5oz 8000oz x 1oz
25lb : 0.05oz 50lb x 0.1oz 100lb : 0.2oz 250lb : 0.5oz 500lb : 1oz
10kg x 0.001kg 25kg x 0.002kg 50kg x 0.005kg 100kg x 0.01kg 250kg x 0.02kg
10000g x 1g 25000g x 2g 50000g x 5g 100000g x 10g 250000g x 20g
Max. Displayed Resolution 1:12500 1:12500 1:12500 1:12500 1:12500
Capacity x Certified/Approved Readability 25 lb x 0.005 lb 50 lb x 0.01 lb 100 lb x 0.02 lb 250 lb x 0.05 lb 500 lb x 0.10 lb
10 kg x 0.002 kg 25 kg x 0.005 kg 50 kg x 0.01 kg 100 kg x 0.02 kg 250 kg x 0.05 kg
Max. Certified Resolution 1:5,000 1:5,000 1:5,000 1:5,000 1:5,000
Column 13.8" painted steel 13.8" painted steel 26.8" painted steel 26.8" painted steel 26.8" painted steel
Dimensions 12 x 3.7 x 23.2 x 12 x 16.7" 12 x 3.7 x 23.2 x 12 x 16.7" 18 x 4.5 x 37 x 18 x 22.7" 18 x 4.5 x 37 x 18 x 22.7" 24 x 5.4 x 37 x 24 x 28.7"


Cat.No. Model Weighing Capacity Readability EA   Certified
316-80501477 D71P10QR1 25 lb 0.002 $1394.00
1/EA
Add To Favorites
316-80501478 D71P25QR1 50 lb 0.005 $1394.00
1/EA
Add To Favorites
316-80501479 D71P50QL2 100 lb 0.01 $1553.00
1/EA
Add To Favorites
316-80501480 D71P100QL2 250 lb 0.02 $1553.00
1/EA
Add To Favorites
316-80501481 D71P250QX2 500 lb 0.05 $2189.00
1/EA
Add To Favorites
