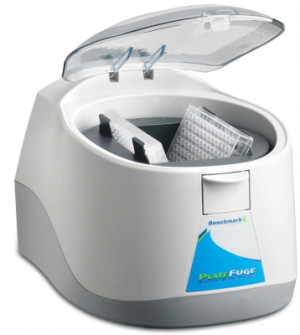

Benchmark's PlateFuge™ is a "mini" sized centrifuge with a swing out rotor for microplates. Centrifuging plates before PCR ensures all reactants are in the bottom of the wells for proper concentrations and improved yields.
In spite of its remarkably small footprint (9 x 10"), the PlateFuge™ includes a uniquely designed, swing out rotor capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force "swings" the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
With a g-force of over 400 x g, most samples can be spun down in less than 20 seconds. To end a run, simply open the lid and the automatic, electric brake brings therotor to a quick, smooth stop in about 7 seconds. Plates can then be easily removed from the rotor.
|Speed||2,100 rpm / 400 x g|
|Capacity||2 x PCR Plates* / 2 x Microplates / 24 x 0.2mL PCR strips|
|Dimensions||9.2 x 10.2 x 7.75"|
|Electrical||115V, 60Hz or 230V, 50Hz|
