Chromato-Vue® Large High Performance UV Cabinets

By UVP

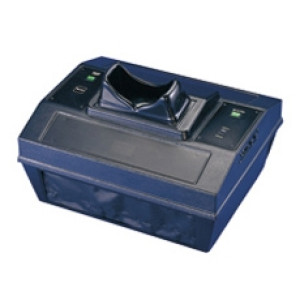

Chromato-Vue® Large High Performance UV Cabinets

Chromato-Vue® Viewing Cabinets provide a darkroom environment with UV fluorescence for viewing materials. The C-75, C70G and C-71 models are larger cabinets designed for chromatography, NDT and other applications.

C-75 models feature high intensity 15-watt shortwave (254nm) and longwave (365nm) UV tubes positioned on two sides of the cabinet, providing overhead UV illumination for many applications including fluorescence studies and non-destructive testing. Power switches are conveniently placed for operating the UV and interior white light, while a lightweight curtain blocks exterior light from the cabinet interior. A soft rubber viewport provides a comfortable viewing area with adequate space for glasses. Contrast control filter absorbs UV energy to protect the eyes.

In addition to these features, the C-70G and C-71 Chromato-Vue® Cabinets have a removable bottom panel, so the cabinet may be placed over large samples or a transilluminator. C-70G cabinets include two each of 15-watt shortwave (254nm) and longwave (365nm) UV. The C-71 has four 15-watt, longwave (365nm) UV tubes on one side of the unit.

Cabinets are made of durable, lightweight plastic.

Dimensions for C-75: Interior: 17W x 14D x 6H in. (432 x 356 x 152mm). Exterior: 19.75W x 16.5D x 15.75H in. (502 x 419 x 400mm).

Dimensions for C-70G and C-71: Interior: 21W x 13D x 8H in. (533 x 330 x 203mm). Exterior: 23.4W x 15.8D x 13H in. (594 x 401 x 203mm).

Replacement Tubes:
Tube, 15-watt, 365nm: 49-34-0009-02
Tube, 15-watt, 254nm: 49-34-0008-01



Chromato-Vue® C-75 UV Cabinets


Chromato-Vue® C-70G and C-71 UV Cabinets

Cat.No.BrandNameWavelengthVoltageEA Certified
49-95-0253-01 Chromato-Vue® C-75 Large UV Viewing Cabinet 254/365nm UV 115V $2435.95
1/EA
Add To Favorites
49-95-0253-02 Chromato-Vue® C-75 Large UV Viewing Cabinet 254/365nm UV 230V $2435.95
1/EA
Add To Favorites
Chromato-Vue® C-70G and C-71 UV Cabinets

Cat.No.BrandNameWavelengthVoltageEA Certified
49-95-0020-04 Chromato-Vue® C-70G Large UV Viewing Cabinet 254/365nm UV 115V $2193.00
1/EA
Add To Favorites
49-95-0020-05 Chromato-Vue® C-70G Large UV Viewing Cabinet 254/365nm UV 230V $2193.00
1/EA
Add To Favorites
49-95-0022-01 Chromato-Vue® C-71 Large UV Viewing Cabinet 365nm UV 115V $2003.35
1/EA
Add To Favorites
49-95-0022-02 Chromato-Vue® C-71 Large UV Viewing Cabinet 365nm UV 230V $2003.35
1/EA
Add To Favorites
49-42-0001-03   BALLAST (C71/C70G), 115V     $0.00
0/EA
CALL FOR PRICE
Add To Favorites
49-34-0040-01   BULB (FOR 230V C-70G)     $14.42
0/EA
Add To Favorites
49-34-0002-01   BULB, 25W VIS (115V C70G, C     $14.16
0/EA
Add To Favorites
49-72-0003-01   CURTAIN (C71, C70G)     $16.07
0/EA
Add To Favorites
49-98-0020-02   FILTER ASSEMBLY, SW (C70G)     $842.54
0/EA
Add To Favorites
49-38-0001-01   FILTER GLASS LW (C71)     $46.35
0/EA
Add To Favorites
49-42-0050-02   BALLAST (C71/70G), 230V     $0.00
0/EA
CALL FOR PRICE
Add To Favorites
49-58-0003-04   CORD, PWR 8' (EL, COMP., H     $11.85
0/EA
Add To Favorites
