Three- and six-port filter funnel manifolds allow multiple 25 or 47mm filter funnels to be connected to a single vacuum line. Several manifolds can be connected in series to expand production capacity even further. Available in either polyurethane or aluminum.

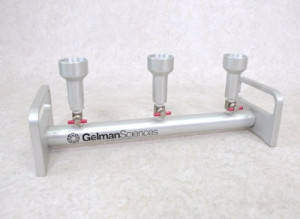

Aluminum manifolds are durable and light weight with large port openings for easy cleaning and sanitizing. Constructed of anodized aluminum, they have 1/4" MNPT stainless steel drain plugs, chrome-plated brass valves, Viton O-rings and 1/4" nylon adapters. Autoclavable. Dimensions (H x L x D): 3-place,16 x 41 x 15cm; 6-place, 16 x 82.5 x 15cm.
Polyurethane manifolds (3-place) have glass-filled polypropylene valves that feature a "release" position to facilitate removal of the membrane from the funnel. 1/4" nylon hose barb connection to vacuum source and 1/4" nylon NPT drain plug. #2 rubber stoppers with center hole. Unit can be sanitized by flushing 70% alcohol or other disinfectant through the manifold ports. Not autoclavable. Dimensions: 10.2 x 27.9 x 15.2cm (H x L x D).
