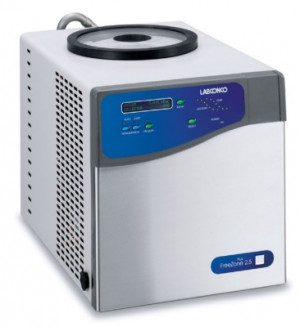

FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry Systems

By Labconco
FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry Systems

FreeZone® Plus 2.5 Liter Cascade Benchtop Freeze Dry Systems have a small footprint and reach -84°C for processing samples with low eutectic points including ones containing acetonitrile. Its compact design is ideal for small sample loads or dedicated use by one researcher. Upright stainless steel collector coil removes 1.8 liters of water in 24 hours and holds 2.5 liters of ice before defrosting is necessary (models with PTFE-coated collector coil and chamber are available for processes involving corrosive compounds). The user may select the LCD to display vacuum in mBar, Pa or Torr and temperature in C or F. The LCD also displays alarm messages and service information such as hours of refrigeration and vacuum pump operation. The brushed stainless steel front panel with blue accents provides an updated, sleek appearance. Other exclusive features include a moisture sensor that protects the vacuum pump by preventing start up when moisture is detected in the collector chamber area and vacuum break valve that protects the system from oil backstreaming. Vacuum pump, drying accessory and freeze dry glassware are required (not included).

Additional features:

  • Epoxy-coated steel exterior
  • 1/4 hp and 1/3 hp dual refrigeration systems
  • Audible/visual alarm for abnormal system event (power failure, improper line voltage supply, collector temperature above -40°C, moisture in collector, and service vacuum pump
  • Vacuum control and break valve
  • RS-232 port
  • One button automatic refrigeration and vacuum start up with manual overrides
  • Collector drain hose
  • Power switch
  • 3" diameter accessory attachment port
  • Rubber feet
  • 3' of 3/4" ID vacuum hose and 2 clamps

System Dimensions: 15.1"W x 23.2"D x 16.9"H


Cat.No. Brand Name Voltage Plug Type EA   Certified
1195-7670020 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System 115V Domestic $12205.00
1/EA
Add To Favorites
1195-7670021 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System, with PTFE-Coated Collector 115V Domestic $13165.00
1/EA
Add To Favorites
1195-7670030 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System 230V Schuko $12440.00
1/EA
Add To Favorites
1195-7670031 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System, with PTFE-Coated Collector 230V Schuko $13415.00
1/EA
Add To Favorites
1195-7670040 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System 230V North America $12440.00
1/EA
Add To Favorites
1195-7670041 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System, with PTFE-Coated Collector 230V North America $13415.00
1/EA
Add To Favorites
1195-7670060 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System 230V British (UK) $12440.00
1/EA
Add To Favorites
1195-7670061 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System, with PTFE-Coated Collector 230V British (UK) $13415.00
1/EA
Add To Favorites
1195-7670070 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System 230V China/Australia $12440.00
1/EA
Add To Favorites
1195-7670071 FreeZone® Plus 2.5 Liter Benchtop Cascade Freeze Dry System, with PTFE-Coated Collector 230V China/Australia $13415.00
1/EA
Add To Favorites
