XT Series Refrigerators

By Taylor - Wharton

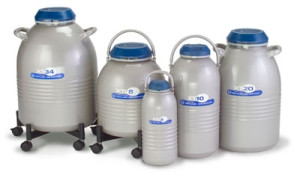

XT Series Refrigerators

The Extended Time Series (XT) of cryogenic refrigerators are designed for long-term storage of a variety of materials at cryogenic temperatures. This series also offers a low-profile model (XTL), with 5-inch canisters.

Features:

  • New Rugged Construction - ribbed high strength aluminum body, magniformed necktube design, and more durable paint
  • Versatile storage system - convenient canister index location ring and tapered internal spider
  • Superior vacuum performance with super insulation provides maximum holding times
  • Security - Accessory low-level alarm is available with remote monitor capability.
  • Lockable lids
  • Mobility - Roller bases are available for some models

Specifications:

Models XTL3 XTL8 XTL10 XTL20 XTL34
Static Holding Time (nom.) - days 27 80 100 230 340
Working Time - days 17 50 62 140 212
Evaporation Rate - liters/day 0.11 0.10 0.10 0.09 0.10
Liquid Nitrogen Capacity - liters 3 8 10 20.7 34
Weight Empty - lbs (kg) 7.2 (3.3) 19.6 (8.9) 16.5 (7.5) 26 (11.8) 34.75 (15.8)
Weight Full (3) - lbs (kg) 12.5 (5.7) 33.8 (15.4) 34.3 (15.6) 62.8 (28.6) 95.3 (43.3)
Neck Diameter - in (mm) 2.0 (51) 2.0 (51) 2.0 (51) 2.0 (51) 2.0 (51)
Overall Height - in (mm) 17.2 (437) 19 (483) 23.8 (597) 25.8 (655) 26.3 (668)
Overall Diameter- in (mm) 7.6 (193) 15.6 (396) 11.4 (290) 15.6 (396) 18.8 (478)
Number of Canisters 6 6 6 6 6
Canister Dimensions* - in (mm) 1.5 x 5 (38 x 127) 1.5 x 5 (38 x 127) 1.5 x 11 (38 x2 79) 1.5 x 11 (38 x 279) 1.5 x 11 (38 x 279)
Number of 1.2 ml & 2.0 ml vials (5/cane) N/A N/A 150 150 150
Number of 1.2 ml & 2.0 ml vials (6/cane) N/A N/A 180 180 180
Number of 1/2 cc straws (10/cane) N/A N/A 540 240 540
Number of 1.2 cc straws - Bulk (1 level) 750 750 750 750 750
Number of 1/2 cc straws - Bulk (2 levels) N/A N/A 1500 1500 1500
Roller Base N/A 266-R018-8C00 N/A 266-R018-8C00 266-R033-8C00
Low level alarm N/A N/A N/A 266-R033-8C15 266-R033-8C15

* Canisters available in 5 in height for XT10, XT20 and XT34.


Cat.No. Name EA
266-3XTL XT Series Refrigerators, XTL3 $880.00
1/EA
Add To Favorites
266-8XTL XT Series Refrigerators, XTL8 B-5S $1030.00
1/EA
Add To Favorites
266-10XTA-5 XT Series Refrigerators, XTB10-5S $945.00
1/EA
Add To Favorites
266-10XTA-11 XT Series Refrigerators, XTB10-11M $945.00
1/EA
Add To Favorites
266-20XT-5 XT Series Refrigerators, XTB20-5S $1066.00
1/EA
Add To Favorites
266-20XT-11 XT Series Refrigerators, XTB20-11M $1066.00
1/EA
Add To Favorites
266-34XT-5 XT Series Refrigerators, XT34 $1283.00
1/EA
Add To Favorites
266-34XT-11 XT Series Refrigerators, XT34 $1283.00
1/EA
Add To Favorites
